The Curtis enAble®X1 Power Wheelchair Control System

The Right System For Every Need

Powerbase (PB)

  • Range of current outputs from 75A to 120A.
  • Built-in gyro option for stability control.
  • Drive only and drive and actuator versions.
  • Actuator outputs with built-in switch and positional feedback options.
  • Built-in Inclinometer for inhibit options based on wheelchair position.
  • Built-in real time clock.
  • Memory for system configuration backup.
  • Auxiliary power output / onboard charger function

Hand Control Standard (HCS)

  • Intuitive at-a-glance color LCD icon display with backlight.
  • Five Pin XLR port for Industry standard charger connection and programming access plus additional magnetic charger port option conveniently mounted on side for easy access.
  • Up to 4 selectable and programmable drive profiles with additional seating and auxiliary profiles.
  • 3x assignable soft keys with 6 pages allowing up to 18 programmable buttons. Soft key page default can be set for each drive and seat profile.
  • USB-C phone charger port (nominal 3A).
  • Bluetooth and CAN dongle programming options. CAN dongle via XLR port only.
  • 2x 3.5mm programmable stereo jack sockets.
  • Field replaceable keypad, joystick, joystick gaiter and cable.
  • Day / night background screens.

Hand Control Basic (HCB)

  • Three versions - drive only, drive and actuator and drive actuator and lights.
  • Five Pin XLR port for Industry standard charger connection and programming access plus additional magnetic charger port option conveniently mounted on side for easy access.
  • Up to 4 selectable and programmable drive profiles with additional seating profile.
  • 2x assignable soft keys.
  • 1x 3.5mm programmable stereo jack socket.
  • USB-C phone charger port (nominal 3A).
  • Bluetooth and CAN dongle programming options. CAN dongle via XLR port only.
  • Field replaceable keypad, joystick gaiter and cable.

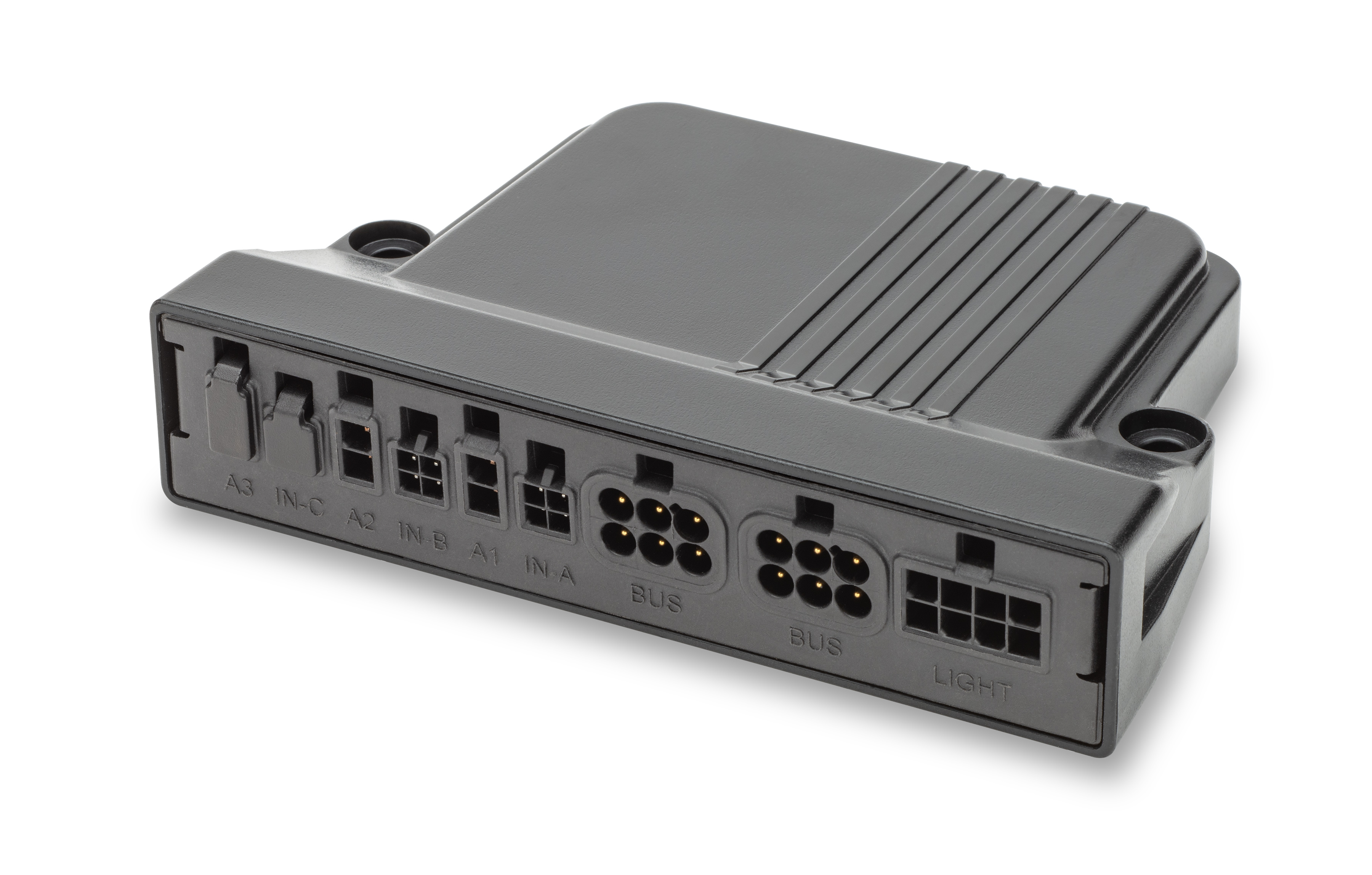

Actuator Modules (AM/AAM) and Light Modules (LML)

  • Modules offering 2, 3 and 5 actuator options.
  • Option to combine different actuator modules.
  • All modules offer switched, inclinometer and positional feedback inhibit options
  • The LML operates lights, indicators, and hazards.
  • 12V LED version and 24V LED/ lightbulb variants available.

Attendant Control (AC)

  • Rear-mounted Joystick for attendant use.
  • Attendant Control - up to 2 selectable and programmable drive profiles with additional seating profile.
  • Attendant takeover option from main drive control.

Special Control Devices

Display Module (DM)

  • Intuitive at-a-glance color LCD display with backlight.
  • 5x soft keys for attendant use allowing access to drive, seating and auxiliary profiles.
  • USB-C phone charger port (nominal 3A)
  • Bluetooth Programming option: (CAN programming only via handcontrol or separate XLR Charging port).
  • 2x 3.5mm programmable stereo jack sockets.
  • Field replaceable keypad and cable.
  • Single switch drive scanning option.

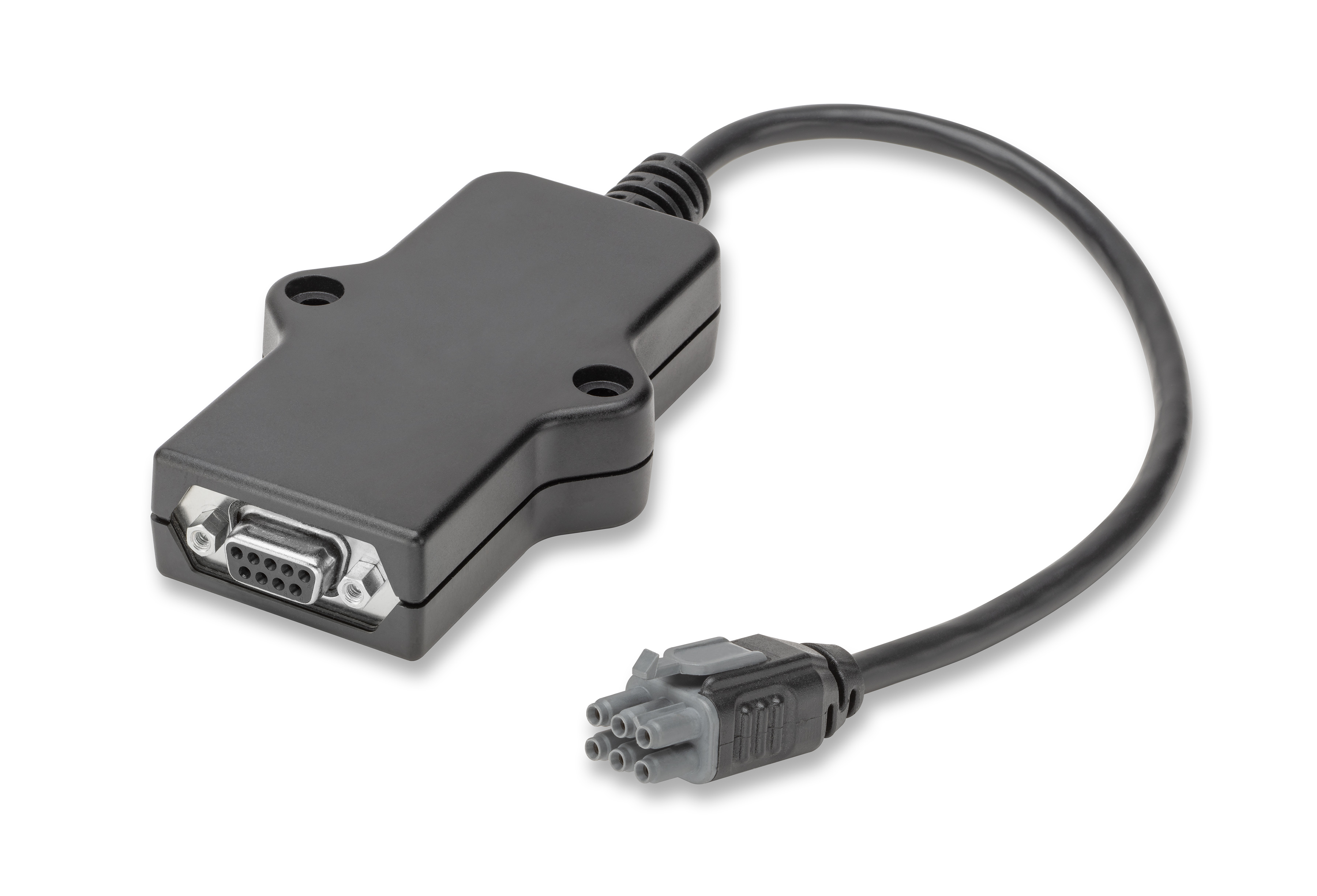

Specialty Control Input Module (SCIM)

  • Input module for use with display module.
  • Nine Pin D-Sub input for specialty input devices.
  • Allows 2, 3, 4 and 5 switch driving, plus optional specialty proportional devices.
  • Up to 4 selectable and programmable drive profiles with additional seating and auxiliary menu profiles.

Sip and Puff Module (SPM)

  • Two or 4 pressure input with additional seating and auxiliary menu profiles.
  • Up to 4 selectable and programmable drive profiles with additional seating profile.

Enhanced Switch Module (ESM)

  • Fully programmable OLED display modulewith 8 button operation.
  • Toggle and flat switch versions available.
  • Up to 8 programmable screens with a maximum of 48 different visible functions.

Accessory Modules and Cable Assemblies

  • Additional USB 2.0 Type A power supply module.
  • Separately mountable XLR charging / programming connector.
  • Remote magnetic charging connector.
  • Range of bus cables of different lengths.
  • Multiplier extensions to add additional modules.
  • Magnetic charger adapter for XLR chargers.
  • CAN programming cable
  • Environmental Control Module (ECM) also available.
